Automation Flexzy Bot

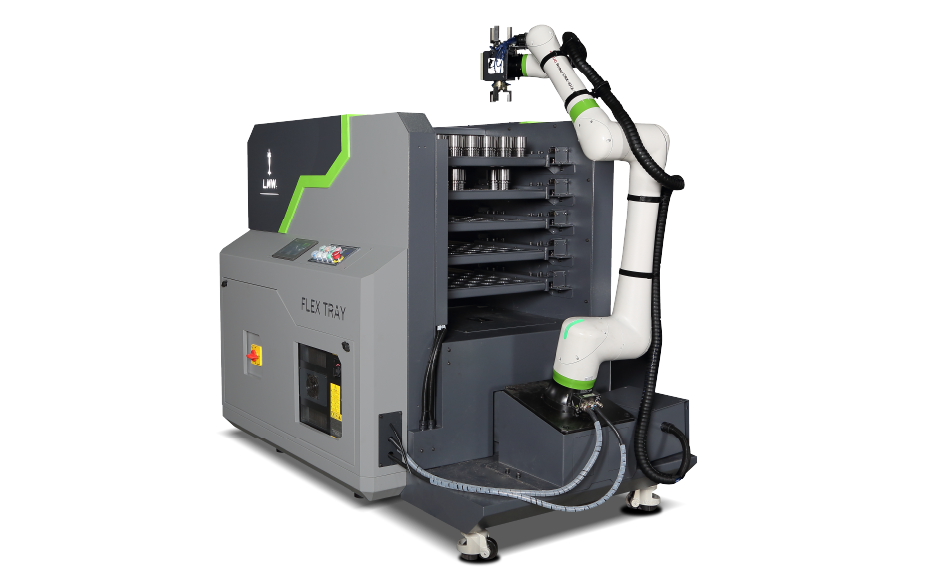

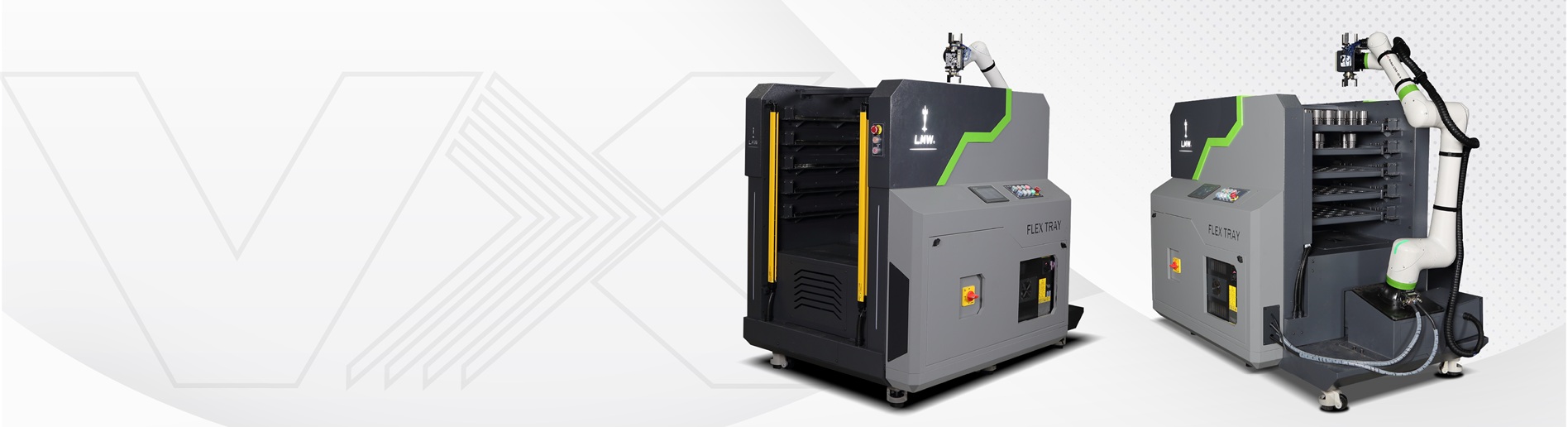

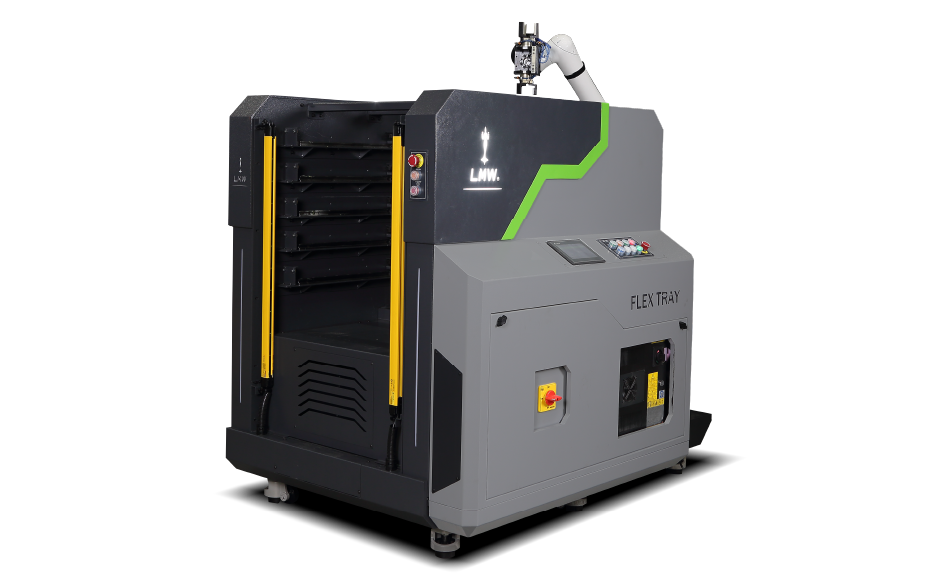

The Flexzy Bot is an automated system designed to handle the loading and unloading of workpieces, such as raw materials or finished components, from machines. It is a compact and efficient solution aimed at enhancing both efficiency and productivity. This automated solution is ideal for industries focused on bulk production, such as automobile, fittings, pump and general engineering, etc., driving improved efficiency and quality in manufacturing processes.
Features
- Equipped with a 6-axis industrial cobot capable of handling a payload of up to 12 kg.
- Compact design with overall dimensions of 1850 mm x 1200 mm x 1550 mm, suitable for space-constrained environments.
- Engineered to tend up to three CNC machines simultaneously.
- Capable of handling workpieces with a maximum height of 200 mm and round bar diameters ranging from 5 mm to 225 mm, providing versatility for various component sizes.
- Features a portable cell with a configurable 3 to 10-drawer stacker system, each drawer measuring 500 mm x 590 mm.
- The component tray features a removable plate that can be adjusted to accommodate different component sizes.
- Castor leveling wheels enable easy relocation, while an integrated leveling mechanism ensures precise alignment and stability.
