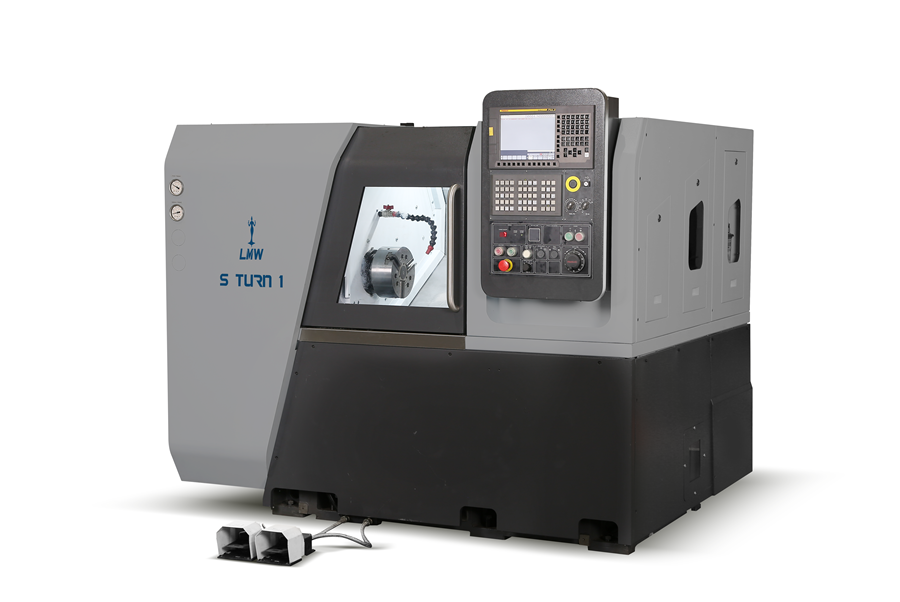

S Turn I
| Description | Unit | S Turn I |
|---|---|---|
| Capacity | ||
| Swing over Bed | mm | 510 |
| Swing Over Carriage | mm | 340 |
| Admit between centre | mm | 495 |
| Maximum Turning Diameter | mm | 320 |
| Maximum Turning Length | mm | Ø300 |
| Chuck Size | mm | 210 (8") |
| SPINDLE | ||
| Spindle Nose | - | A2-5 |
| Spindle Nose | - | 1/20 |
| Hole Through Spindle | mm | 54 |
| Maximum Bar Capacity | mm | Ø42 # |
| Spindle Speed | rpm | 4500 |
| Motor Power (cont. / 15min) | kW | 5.5 / 7.5 |
| Maximum Torque on Spindle | Nm | 81.7 |
| Spindle Front Bearing (ID) | mm | Ø80 |
| TURRET | ||
| No. of Stations | - | 8 |
| Tool Shank Size | mm | 25 X 25 |
| Maximum Boring Bar Diameter | mm | Ø40 |
| Indexing | - | Bi - directional |
| Indexing Time (per Station) | Sec | Less than 1.0 |
| Tailstock | ||
| Tailstock quill dia | mm | Ø65 |
| Tailstock quill stroke | mm | 80 |
| Quill Taper | - | MT-4 |
| Tailstock base stroke | mm | 324 |
| Maximum Tailstock thrust force | Kgf | 515 (@35 bar) |
