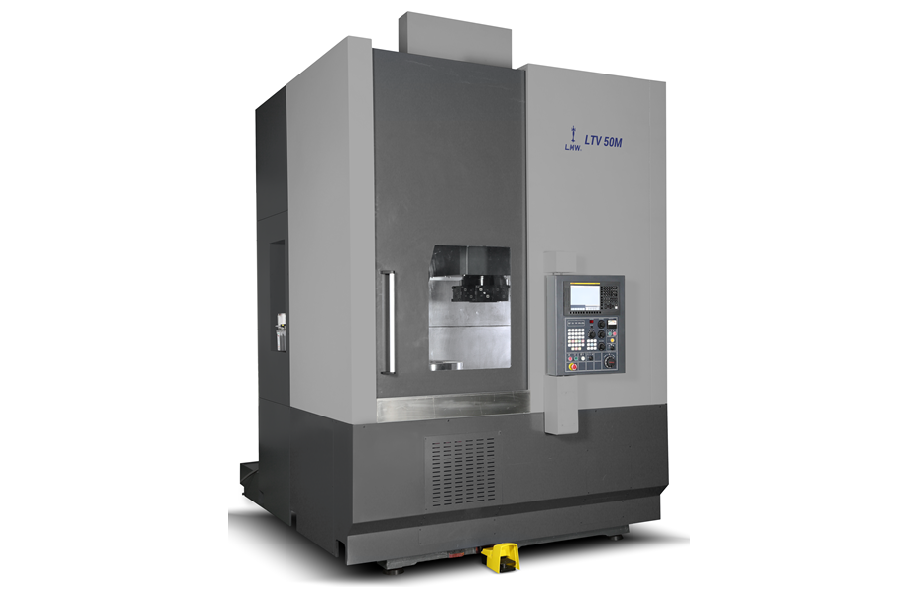

LTV 50M
| Description | Unit | LTV 50M |
|---|---|---|
| Capacity | ||
| Swing over Bed | mm | 880 |
| Chuck dia. | mm | 530 |
| Max. Turning Diameter | mm | 700 |
| Max.Turning Length | mm | 650 |
| Spindle | ||
| Spindle nose | type | A2-11 |
| Hole through Spindle | mm | 100 |
| Spindle Speed | rpm | 1800 |
| Spindle Motor Power (Cont./30 min) | Kw | 18.5 / 22 |
| FEED | ||
| Cross Travel X - Axis | mm | 428 |
| Longitudinal Travel Z - Axis | mm | 700 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 12 |
| TURRET | ||
| Max.drill dia. | mm | 60 |
| Max.tap | - | M20 |
| No. of Stations | nos. | 12 |
| Tool Shank Size | mm | 32 x 32 |
| Maximum Boring Bar Diameter | mm | 60 |
| Turret Indexing | Type | Servo |
| Turret Indexing Time | Sec | 1 to 1.5 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 2342 x 2600 x 4555 |
| Weight | kg | 12000 |
