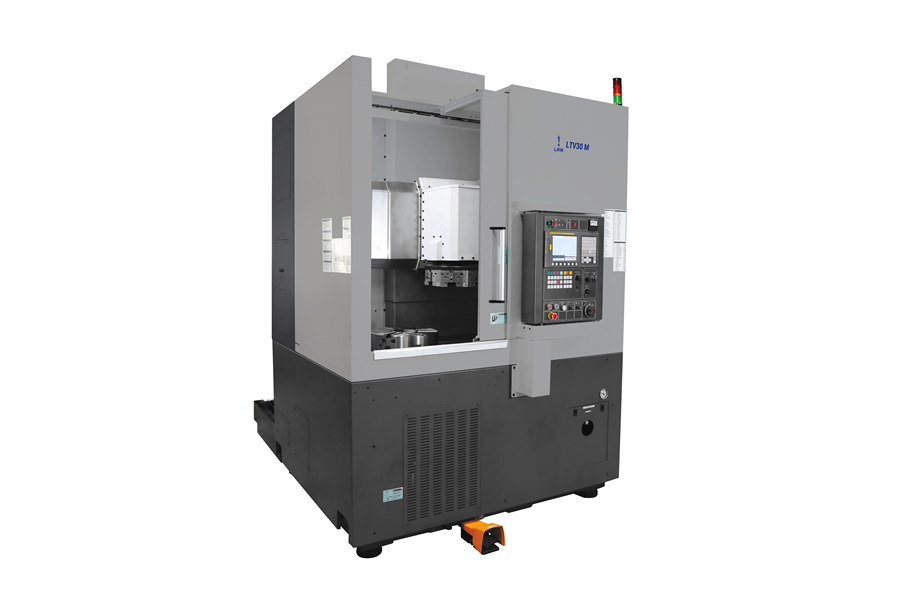

LTV 30M
| Description | Unit | LTV 30M |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 670 |
| Chuck dia. | mm | 304 |
| Max. Turning Diameter | mm | 394 |
| Max.Turning Length | mm | 392 |
| Main Spindle | ||
| Spindle nose | type | A2-8 |
| Hole through Spindle | mm | 56 |
| Spindle Speed | rpm | 2500 |
| Spindle Motor Power (Cont./30 min) | Kw | 15 / 18.5 |
| FEED | ||
| Cross Travel X - Axis | mm | 275 |
| Longitudinal Travel Z - Axis | mm | 465 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 20 |
| TURRET | ||
| Max.drill dia. | mm | 40 |
| Max.tap | - | M16 |
| No. of Stations | nos. | 12 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Servo |
| Turret Indexing Time | Sec | 1 to 1.5 |
| CNC SYSTEM | ||
| CNC System | Type | Fanuc |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 1830 x 2870 x 2945 |
| Weight | kg | 6600 |
