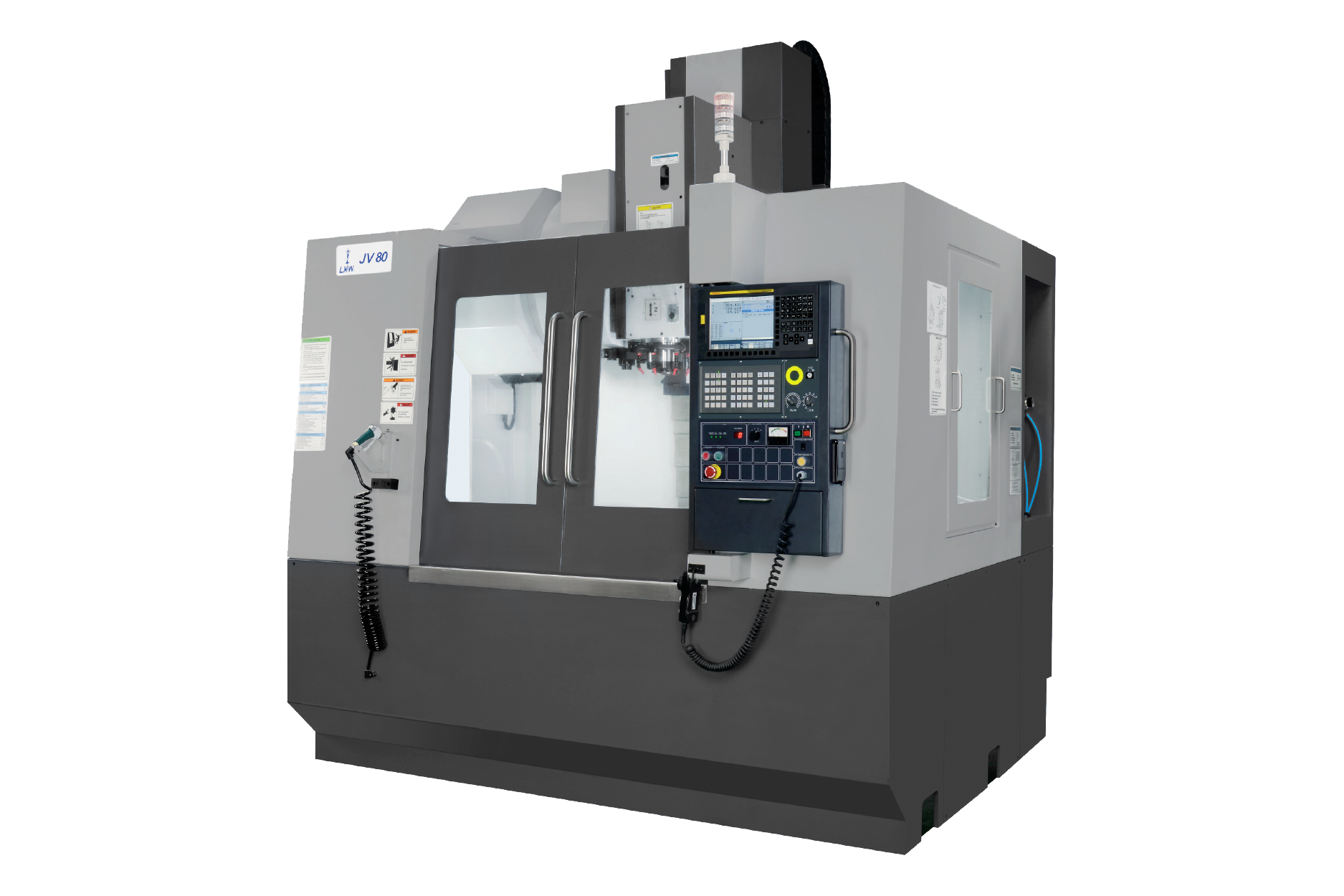

JV 80
Description | Unit | JV 80 |
---|---|---|
STROKE | ||
X/Y/Z - Axis | mm | 820 x 540 x 600 |
Distance between Spindle nose & Table top | mm | 125 – 725 |
TABLE | ||
Table Size | mm | 1000 × 560 |
Table Loading Capacity | kgs | 800 |
T Slot size x Pitch | nos. x mm x mm | 5 x 18 x 100 |
SPINDLE | ||
Max. Spindle Speed | rpm | 5000 |
Spindle Bore Taper | Type | BT 40 |
Spindle Motor Power (Cont. / Inter.) | kw | 11 / 15 |
Max. Spindle Torque (Cont. / Inter.) | Nm | 78/143 |
FEED SYSTEM | ||
Rapid Traverse rate (X/Y/Z) - Axis | m/min | 36 / 36 / 24 |
Cutting feed rate | m/min | 20 |
AUTOMATIC TOOL CHANGER | ||
No. of tools | nos. | 20 |
Tool Shank Configration | Type | BT-40 |
Max. tool diameter with adjacent tool | mm | 80 |
Max. tool diameter without adjacent tool | mm | 150 |
Max. Tool length | mm | 350 |
Max. Tool weight | kg | 7 |
Tool change time (tool to tool) | sec | 3.5 |
MACHINE SIZE | ||
L x B x H | mm | 2620 x 2860 x 3165 |
Weight | kgs | 5000 |
ACCURACY | ||
Positioning Accuracy (X/Y/Z) - Axis | mm | 0.010 |
Repeatability | mm | ±0.003 |
CNC SYSTEM | ||
Controller | Type | Mitsubishi/Siemens/Fanuc |
