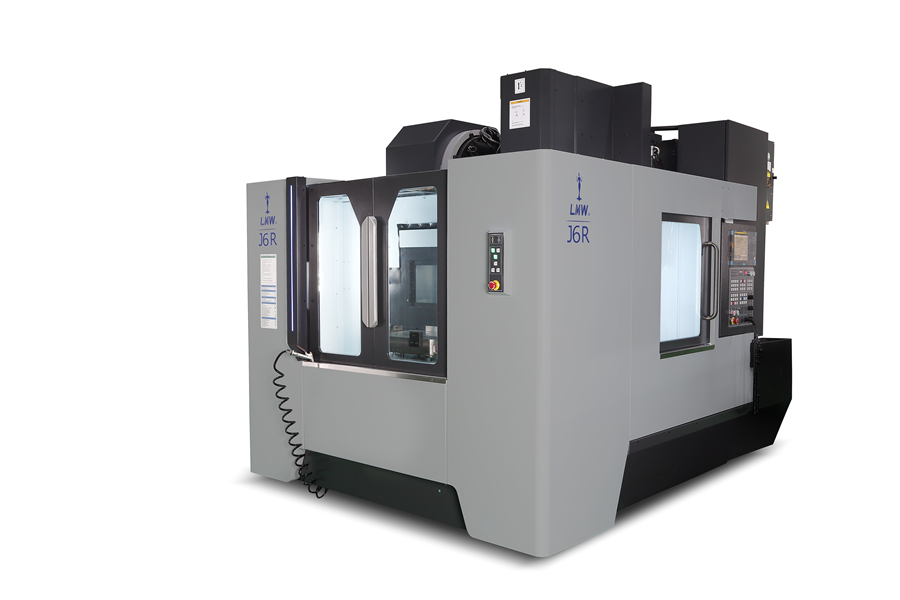

J6 R
NEW | Description | Unit | J6 R |
|---|---|---|
| TRAVEL | ||
| X/Y/Z Axis | mm | 1000 x 550 x 500 |
| TABLE | ||
| Table size | mm | 850 x 500 |
| Table loading capacity | kgs | 600 (2x300) |
| SPINDLE | ||
| Spindle speed | rpm | 8000 |
| Spindle bore taper | type | BT40 (BBT40) |
| Motor power (Cont./S2/S3) |
kW | 11 / 15 / 18.5 |
| FEED SYSTEM | ||
| Rapid Traverse Rate | m/min | 36 |
| Cutting feed rate | m/min | 10 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos | 24 |
| Max. tool length | mm | 300 |
| Max. Tool Weight on magazine | kgs | 8 |
| Tool change time (tool to tool) | sec | 1.9 |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 2355 x 3990 x 3090 |
| Weight | kgs | 5600 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc / Mitsubishi / Siemens |
