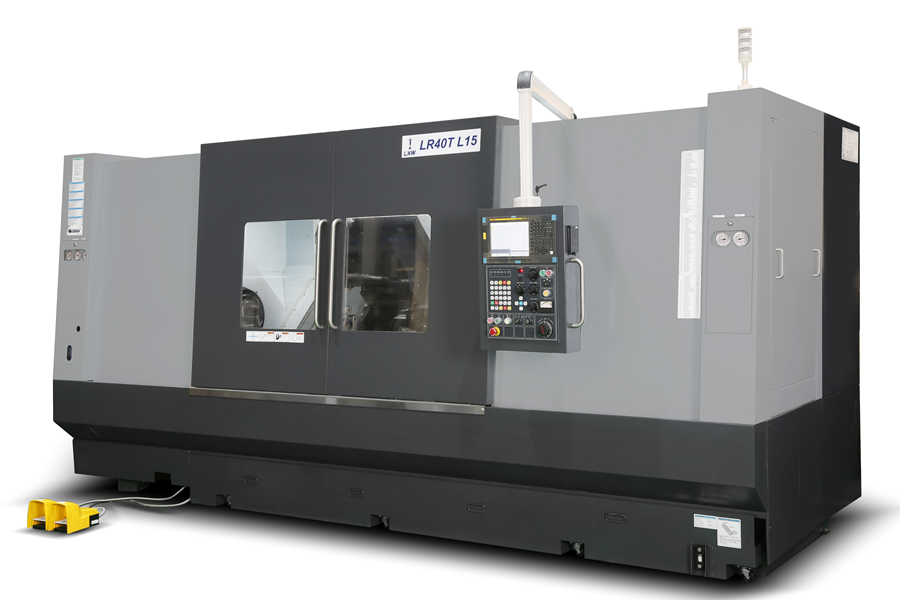

LR40T L15
| Description | Unit | LR40T L15 |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 760 |
| Chuck dia. Max | mm | 381 |
| Max. Turning Diameter | mm | 600 |
| Max.Turning Length | mm | 1500 |
| Admit Between Centres | mm | 1640 |
| SPINDLE | ||
| Spindle nose | type | A2-11 |
| Hole through Spindle | Mm | 113 |
| Spindle Speed | rpm | 1900 |
| Spindle Motor Power (30min/Cont.) | kw | 18.5/22 |
| FEED | ||
| Inclination of Carriage | deg | 45o to Horizontal Plane |
| Cross Travel X - Axis | mm | 330 |
| Longitudinal Travel Z - Axis | mm | 1620 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 24 |
| TURRET | ||
| No. of Stations | nos | 8 |
| Tool Shank Size | mm | 32 x 32 |
| Maximum Boring Bar Diameter | mm | 60 |
| Indexing time (per station) | sec | 1.5 |
| Turret Indexing | Type | Bi-directional |
| Turret Indexing Time | Sec | 1.5 |
| TAILSTOCK | ||
| Quill Diameter | mm | 120 |
| Quill Stroke | mm | 120 |
| Quill Taper. | Type | MT-6 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| Machine Size | ||
| Front x Side x Height | mm | 4950 x 2475 x 2500 |
| Weight | kg | 11000 |
