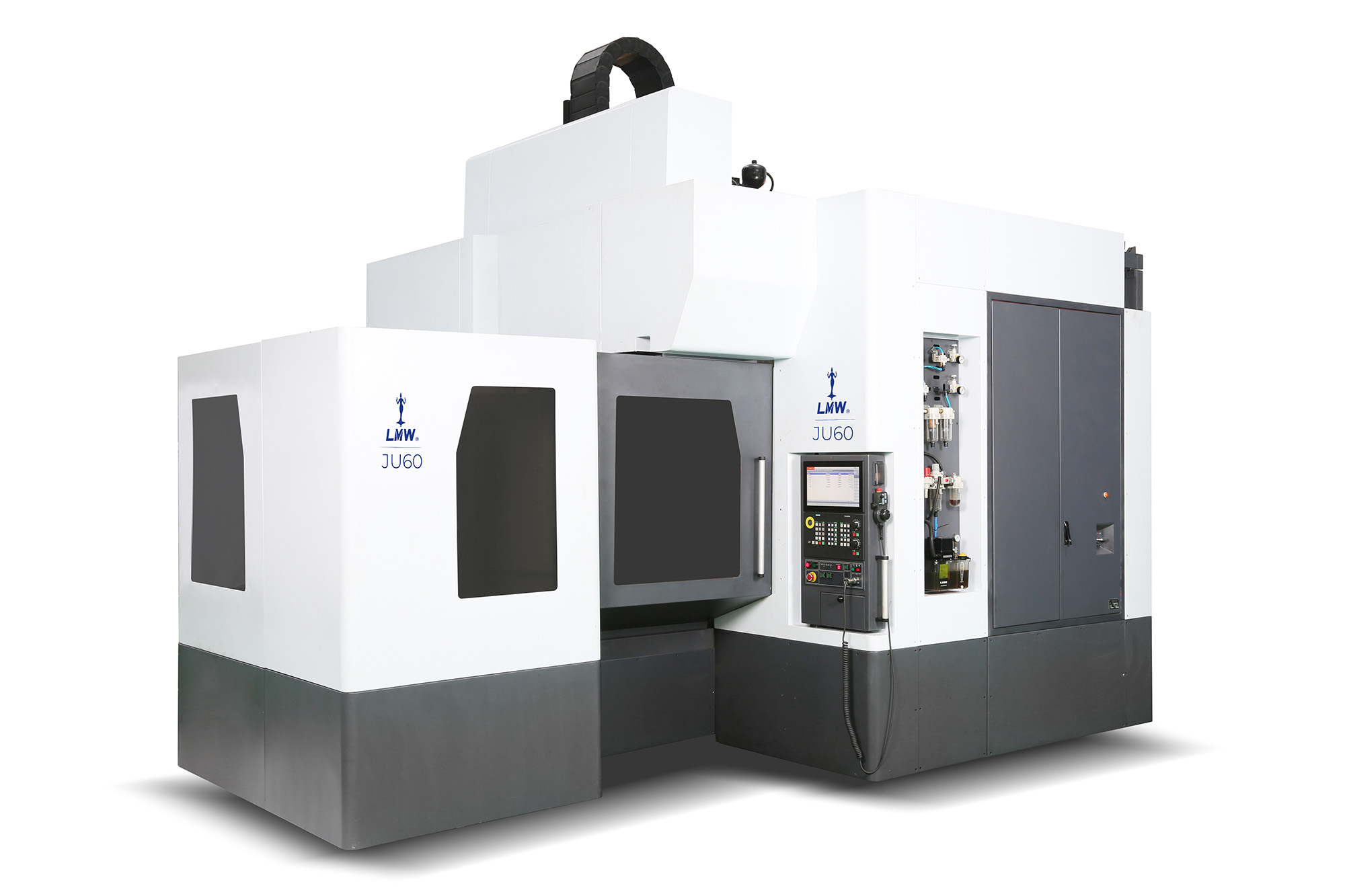

JU 60
| Description | Unit | JU 60 |
|---|---|---|
| STROKE | ||
| X Axis | mm | 500 |
| Y Axis | mm | 400 |
| Z Axis | mm | 320 |
| Distance from spindle nose to table top | mm | 150 – 470 |
| TABLE | ||
| Table Size | mm | 600 ×350 |
| No of T Slots × Pitch | nos. × mm | 3 x 14 x 125 |
| Max.Load on the table | kg | 250 |
| SPINDLE | ||
| Spindle bore taper | type | BT-30 |
| Spindle speed | rpm | 10000 |
| Spindle motor power (Cont. / S6 40%) | kw | 3.7 / 5.5 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 48 |
| Rapid traverse rate -Z Axis | m/min | 48 |
| Cutting feed rate | m/min | 10 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos. | 210 |
| Tool Shank | Type | MAS BT-30 |
| Max. tool diameter with adjacent tool | mm | 100 |
| Max. Tool length | mm | 250 |
| Max. Tool weight | kg | 3 |
| Tool change time (tool to tool) | sec | 2.5 |
| CNC SYSTEM | ||
| Controller | Type | Mitsubishi/Fanuc |
| MACHINE SIZE | ||
| Front × Side | mm | 1630 × 1980 |
| Machine Weight(Approx) | kg | 2500 |
